Product Features

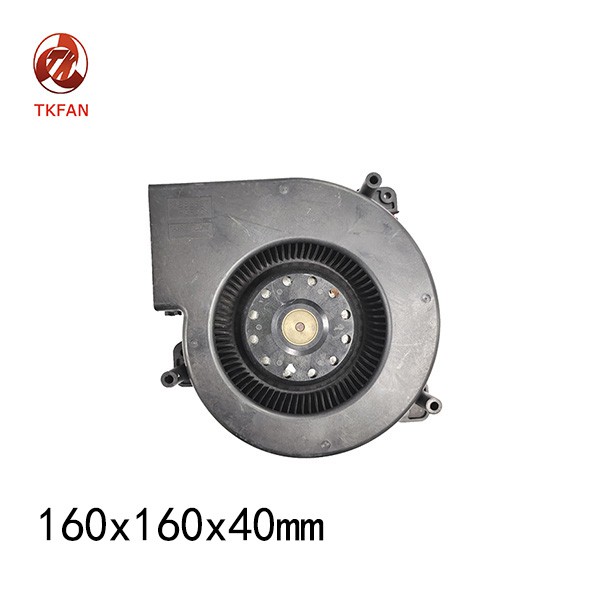

160*160*40mm 12v waterproof dc blower fan, It also can be customized 12v, 24v, 48v three voltages, speed can be from 1800-4500rpm, air volume from 50-117cfm, wind pressure from 17.2mmH2O-90.1mmH2O, noise from 50-71db-A. It can be seen that this is a high air volume, low noise blower, very suitable for industrial industry applications.
If you are looking for a 12v waterproof dc blower fan, this is a good option. If you have more customized needs, you can also communicate with us at any time.
|
Model |
P/N Code |
Rated Voltage |
Operationg Voltage Range |
Rated Current |
Rated Input Power |
Speed |
Maximum Air Flow |
Maximum Air Pressure |
Noise |
||
|
PART.NO. |
AY |
VDC |
VDC |
Amp |
Watt |
R.P.M |
M³/min |
CFM |
mmH2O |
InH2O H2O |
dB-A |
|
BA16040H12X |
12 |
7.5 ~13.5 |
0.8 |
9.6 |
1800 |
1.45 |
50.0 |
17.2 |
0.68 |
50.9 |
|
|
BA16040HH12X |
12 |
7.5 ~13.5 |
1.4 |
16.8 |
2300 |
1.74 |
61.5 |
35.8 |
1.41 |
55.3 |
|
|
BA16040VH12X |
12 |
7.5 ~13.5 |
4.8 |
57.6 |
3500 |
2.29 |
89.1 |
59.4 |
2.34 |
64.2 |
|
|
BA16040HV12X |
12 |
7.5 ~13.5 |
8.0 |
96 |
4500 |
3.31 |
117.1 |
90.1 |
3.55 |
71.4 |
|
|
BA16040H24X |
24 |
18 ~26.5 |
0.4 |
9.6 |
1800 |
1.45 |
50.0 |
17.2 |
0.68 |
50.9 |
|
|
BA16040HH24X |
24 |
18 ~26.5 |
0.7 |
16.8 |
2300 |
1.74 |
61.5 |
35.8 |
1.41 |
55.3 |
|
|
BA16040VH24X |
24 |
18 ~26.5 |
2.4 |
57.6 |
3500 |
2.29 |
89.1 |
59.4 |
2.34 |
64.2 |
|
|
BA16040HV24X |
24 |
18 ~26.5 |
4.0 |
96 |
4500 |
3.31 |
117.1 |
90.1 |
3.55 |
71.4 |
|
|
BA16040H48X |
48 |
36 ~54 |
0.2 |
9.6 |
1800 |
1.45 |
50.0 |
17.2 |
0.68 |
50.9 |
|
|
BA16040HH48X |
48 |
36 ~54 |
0.35 |
16.8 |
2300 |
1.74 |
61.5 |
35.8 |
1.41 |
55.3 |
|
|
BA16040VH48X |
48 |
36 ~54 |
1.2 |
57.6 |
3500 |
2.29 |
89.1 |
59.4 |
2.34 |
64.2 |
|
|
BA16040HV48X |
48 |
36 ~54 |
2 |
96 |
4500 |
3.31 |
117.1 |
90.1 |
3.55 |
71.4 |
|
Packing
Use high-quality, high-strength cardboard and eco-friendly lightweight custom foam cotton, to ensure that the blower is not easily damaged during transportation.
Certificates
FAQ
Q: What is the IP level of the cooling fan?
A: The IP waterproof rating of the cooling fan refers to its protection against solid objects and liquids. The IP rating is usually composed of two numbers, the first number indicates the level of protection against solid objects, and the second number indicates the level of protection against liquids. Here are some common IP waterproof grades and what they mean:
IP20: No waterproof performance. This level of cooling fan does not have protective measures to prevent solid objects or liquids from entering.
IP44: moderately waterproof. This level of cooling fan can prevent solid objects with a diameter greater than 1 mm (such as small tools) from entering, and also has a certain protection against water droplets in the vertical direction.
IP55: waterproof. This level of cooling fan can effectively prevent dust from entering, and also has a good protection effect for the water column sprayed from any direction, suitable for use in humid environments.
IP68: completely enclosed and waterproof. This grade of cooling fan has the highest level of water resistance, can be immersed in water for a long time without damage, and is suitable for extremely wet or liquid environments.
The IP waterproof rating of the cooling fan is usually determined by the sealing materials, housing structure and protective measures used in its design and manufacturing process. When selecting a cooling fan, select an appropriate IP waterproof level based on the requirements and conditions of the actual use environment to ensure the safety and reliability of the device.
